Equipment of Takada laboratory

---

Computer

- The students are basically supposed to use LINUX -

General works can be done on LINUX for free such as making documentations and presentation slides, and numerical simulations. Especially, Debian is recommended for use due to its simplicity to install and update various application software. Though the knowledge on LINUX is not required at the beginning, it is essential to make efforts to manage it, which could lead academic capability as well.

Examples of software tools

Documentation	pLaTeX
Presentation slide	Tgif，Prosper
Numerical simulation	MATLAB(non free)，Scilab
Graph	Gnuplot
Image	Gimp

- About the use of Windows -

Windows is capable for the use of commercial simulator, development tool and so on. However, commercial MS office software are banned except the case it is requested by the outsiders like project cooperators and the university. Presentation should be done with pdf files using Adobe Reader etc., instead of PowerPoint.

Softwares for research

MATLAB

An interactive software for numerial simulations, data analyses and plots.

HFSS

3D High-frequency electromagnetic field simulator by finite element method

NEXXIM

High-frequency circuit simulator

FEKO

Electromagnetic field simulator by Moment method，PO(Physical Optics)，UTD(Uniform Theory of Diffraction)

Microwave Office

High-frequency circuit simulator

Maxwell 3D

3D High-frequency electromagnetic field simulator

Measuring instruments

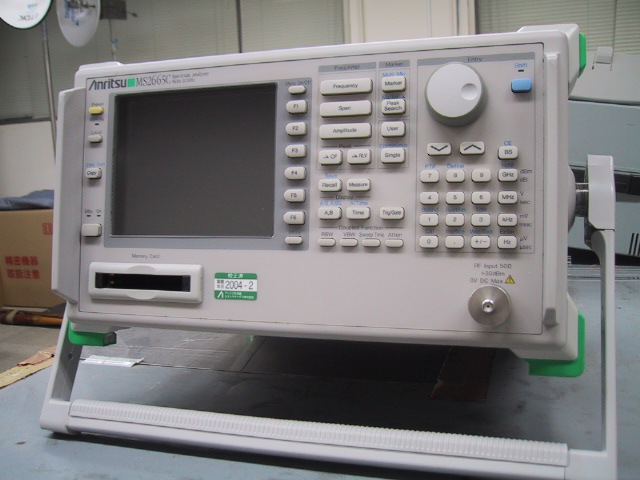

Spectrum analyzer MS2665C (Anritsu)

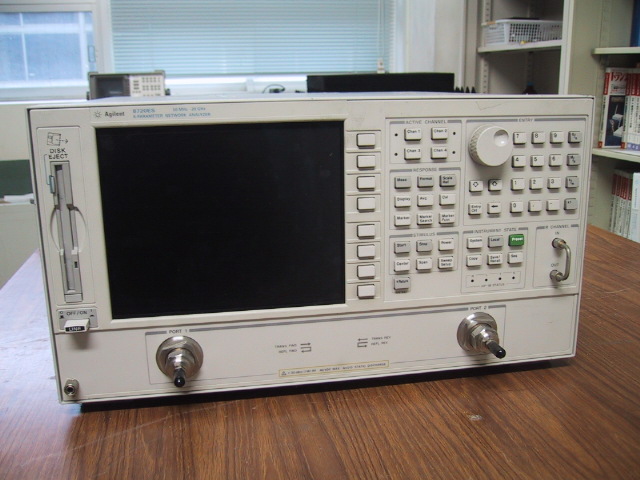

Vector network analyzer 8720ES (Agilent)

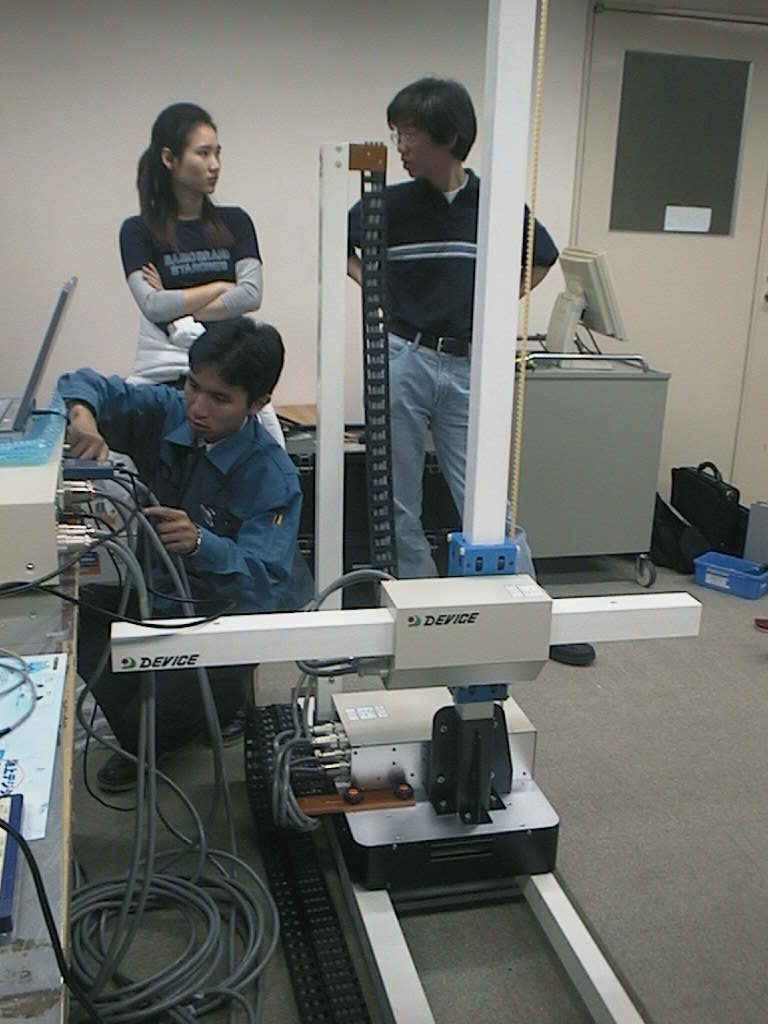

X-Y-Z positioner (DEVICE)

Function signalgenerator 33120A (Agilent)

Synthesized signal generator 8648C (Agilent) @

Portable spectrum analyzer 8593E (Agilent) @

Degital oscilloscope 9354TM (LeCroy) @

@ borrow from corporations

---
